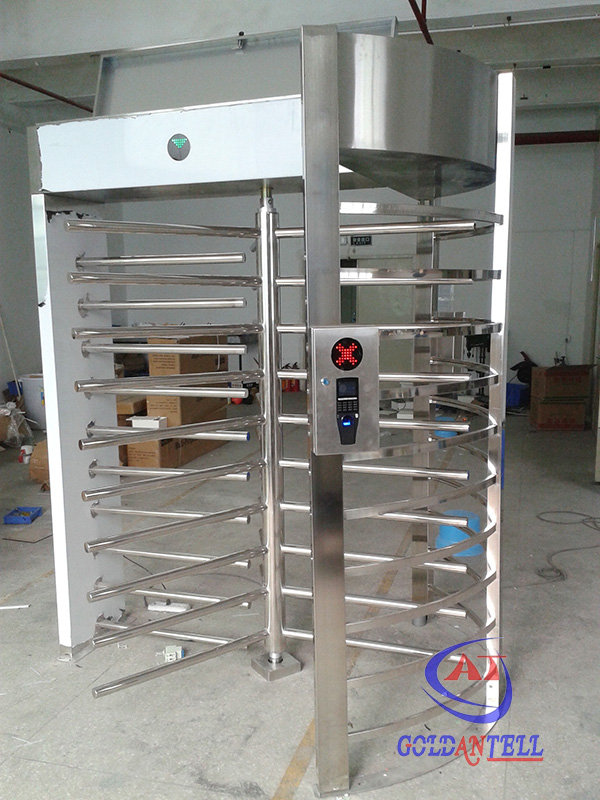

163015002300mm Single Turnstile Gate / SS Bi - Directional Turnstile

Name: 163015002300mm Single Turnstile Gate SS Bi Directional Turnstile
Brand: Goldantell
Price: 1 USD

China 1630*1500*2300mm Single Turnstile Gate / SS Bi - Directional Turnstile wholesale

Brand Name : Goldantell

Model Number : GAT-502

Certification : CE/ROHS/FCC/SGS/IS9001

Place of Origin : Guangdong,China

MOQ : 1pc

Price : negotiation

Payment Terms : T/T,Western Union,L/C,Paypal

Supply Ability : 2,000pcs per month

Delivery Time : 7 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with export wooden case for outer packing

Size Of product : 1630*1500*2300mm (MM)

Package : 3 packages,7CBM

Material : 304 stainless steel/316 stainless steel

Type : Single access Full Height Turnstile

Net weight : 280KG

Gross weight : 350KG

Compatible : RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,Bar code System,ESD Tester Access Control, remote button

Communication port : RS485 ,TCP/IP

Application : Prison, factory, government etc.

Contact Now

1630*1500*2300mm Single Turnstile Gate / SS Bi - Directional Turnstile

Full Height Turnstile Specifications

Technical parameters

Housing material

domestic standard 304#

stainless steel

Size

1630*1500*2300mm (MM)

Working voltage

AC220±10%V 50±10%HZ

Working movement

DC24V solenoid valve

Roof Dimensions :

Φ1500MM

Passage width:

≤600 mm

Reset time after break down:

10 seconds

Time of opening:

0.2 second

Pass speed:

40 persons/min

Time to work after power on:

3 seconds

Normal running life:

3 million

LED light:

direction arrow

Direction:

single or bi-directional (optional)

Working environment:

indoor/outdoor (with a tent over) -25℃ ～ 70℃

Relative humidity:

≤90% coagulation free

Communication interface:

standard RS485 interface,

distance ≤1200m

Input interface:

+12V level signal or pulse

width>100ms

12V pulse, drive current>10mA

Features

1 . Stainless steel housing, novel and beautiful design, durable and stable mechanism.

2 . Waterproof, sunscreen, anti-temperature, anti-cold.Suitable to used outdoor.

3 . Led Indicator Light : Red and green light prompt the passing information.

4 . with a variety of operating modes you can choose, you can set a one-way or two-way control

5 . Can integrated with RFID , magnetic card, bar code card, and other control equipment.

6 . Fire safety function: When out of power , arm will automatically drop down , keep channel open

7 . Scour protection function : The arm will be locked before received the open signal.

8 . Can work with different systems , such as access control system , ticketing system , ESD system , consumption system , construction system , etc

9 . Automatic reset function : Passenger did not pass within the stipulated time , the system will automatically cancel the access permissions of the user . (Default 5 seconds)

Optional Function

1 . Stainless steel Material :316 stainless

2. Stainless steel surface treatment : Satin treatment , brush / hairline finish , mirror finish

3 . The turnstile controller with counting function, LED digital display function

4 . Sound, light alarm function: with trespassing, trailing alarm

5 .Operation Mechanism: Semi automatic Mechanism / fully automatic Mechanism / Manual Type

Application places

Prison, Office building, Government, School, Hotel, Super market, Bank, Park

1630*1500*2300mm Single Turnstile Gate / SS Bi - Directional Turnstile

Full Height Turnstile Size 1630*1500*2300mm Single Turnstile Gate / SS Bi - Directional Turnstile

Size

1630*1500*2300mm Single Turnstile Gate / SS Bi - Directional Turnstile

Full Height Turnstile Package

1630*1500*2300mm Single Turnstile Gate / SS Bi - Directional Turnstile
