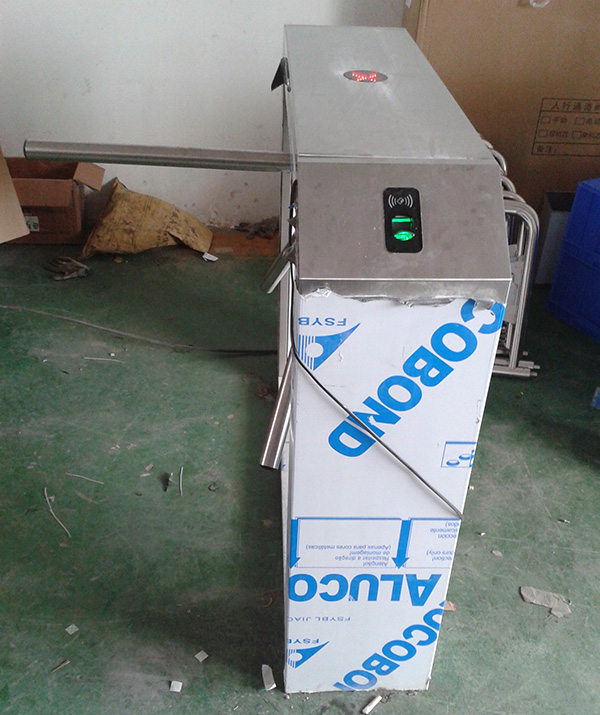

Automatically Tripod Turnstile Gate , Rotary drop arm barrier Fingerprint Recognition Controlled

Automatically Tripod Turnstile Gate , Rotary drop arm barrier Fingerprint Recognition Controlled

Details show

All of our turnstile can support Fingerprint control system. it is very easy for you to use and operate our product.

Turnstile Specifications

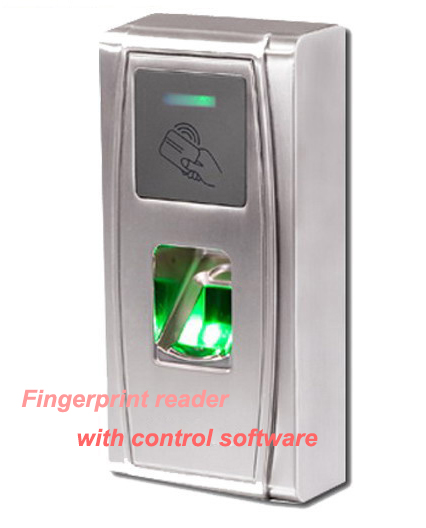

Fingerprint Reader Specifications

Fingerprint Capacity: 1500pcs Card Capacity: 10000pcs Record capacity: 100000 pcs Access port door sensor, alarm, electric lock, door switch Networking way TCP/IP port, RS485 network communications USB interface using USB data to upload, download Fingerprint readers collector new hd without film Resolution 500 dpi Display and operation hints the power indicator light, the double lamp LED status indicators Recognition rate for 2 seconds or less Misjudgment rate of 0.0001% or less From the rate of 0.01% or less Alarm processing teardown processing (alarm when conduction) Algorithm platform latest high-speed twin-engine fingerprint recognition algorithm Hardware platform 12 v DC, standby current < 500 mA, working current < 400 mA Using the environment temperature 0 ℃ - 45 ℃ Using the environment humidity 20% to 80% Size :73 * 148 * 34.5

Feature & functions

• Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you).
• The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on.
• Once an open signal is give, the arms will rotate automatically to a certain angle,and prompt the pedestrian to pass the gate.
• LED indicator light
• The turnstile is bidirectional (pedestrian can enter and exit from one set of turnstile).
• Turnstile can setting the working condition by press the button of main control board.
• Auto- drop- arm function: the arm can drop down automatically (default) (or free passing) when the power is off.
• Auto-lift-arm function: the arm can lift automatically with alert when the power is on again.

Competitive Advantage

1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
2. Friendly and professional customer service people help you in 16 hours.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear
any fee.

tripod access system

tripod barrier

Automatically Tripod Turnstile Gate , Rotary drop arm barrier Fingerprint Recognition Controlled Images
